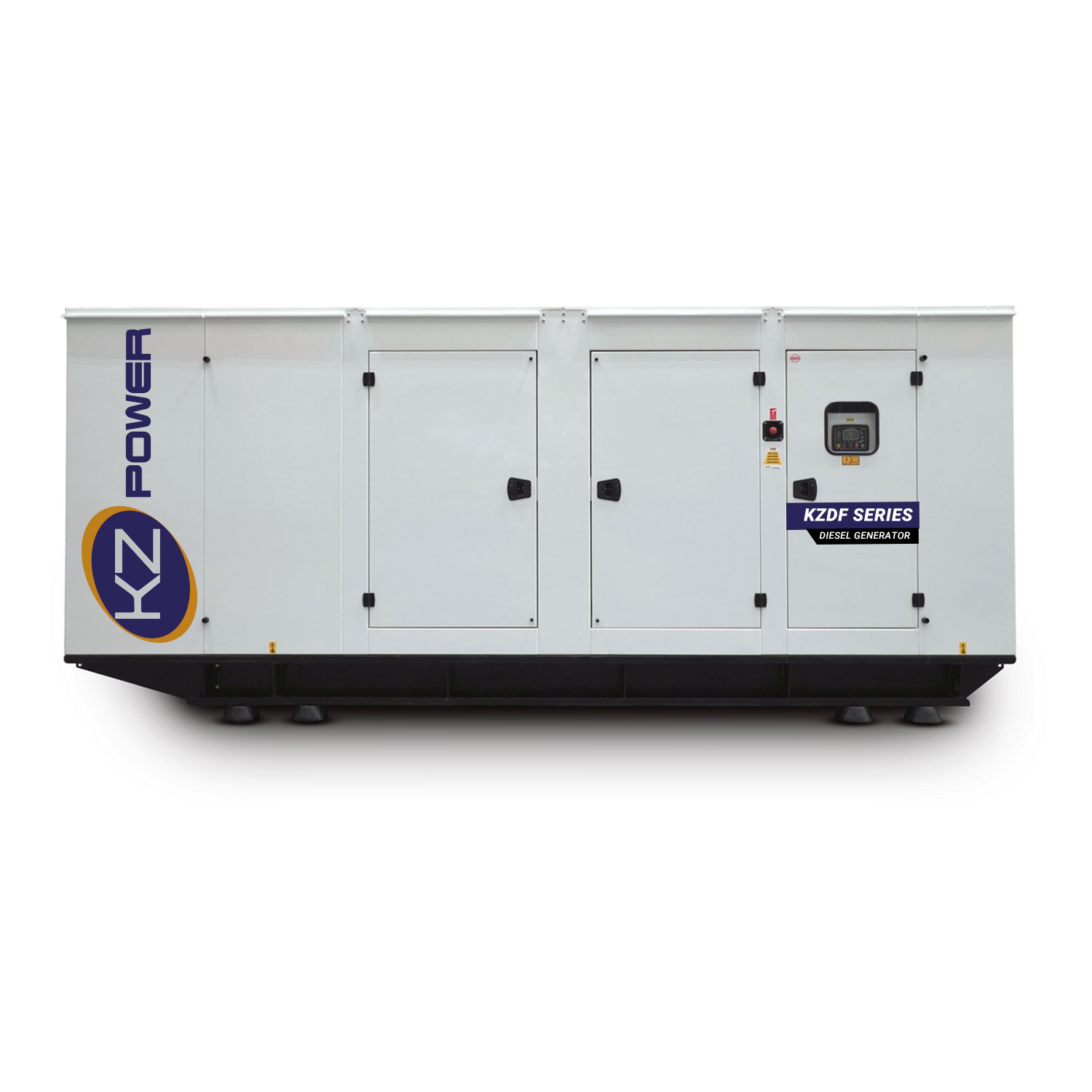

KZDF-G550

DIESEL GENERATOR SET

50 Hz - 1500 rpm

Standby kVA 550
Standby kW 440
Prime kVA 500
Prime kW 400
Rated Speed r.p.m 1500
Power Factor Cos Phi 0,8
Brand   DONGFENG
Model   SMG258TAD46
Engine Type   4 Stroke – Diesel
Injection Type   Direct Injection
Aspiration Type   Naturally Aspirated
Number of cylinders and arrangement   6 – In Line
Bore&Stroke mm 138×168
Displacement L 14,8
Cooling System   Water Cooling
Compression Ratio   16:01
Fuel Consumption Standby l/h 78,1
Fuel Consumption 100% PRP l/h 71
Fuel Consumption 75 % PRP l/h 53
Fuel Consumption 50 % PRP l/h 36
Total oil capacity including tubes,filters L 48
Total coolant capacity L 88
Governor  Type Electronic
Manufacturer   Gentech / Leroy Somer / Stamford
LxWxH mm 3200x1400x2000
Weight kg 3250
Fuel Tank lt 885
LxWxH mm 3700x1400x2626,5
Weight kg 3750
Fuel Tank lt 885
Stand By

550

Prime Power

500
